Your new REVOTION system
1. Add BRAIN
BRAIN
For a new system, you first need a BRAIN, which acts as the 'brain' for your system and communicates wirelessly with all other products. The BRAIN has Bluetooth for local control, LTE-M Internet and GPS for position detection.
NODES are the hardware interfaces that are installed in your vehicle so that the desired function can be smartly controlled or read out. There are currently 5 different NODES, each with different functional areas and accessories.
2. Do you want to read your electricity flows digitally?
NODE Battery
The NODE Battery is responsible for everything to do with electricity. With it, you always have your battery level and various charging currents under control. You can use it, for example, to monitor the energy production of your solar system in real time. Devices of 60A each can be connected to 5 channels on a NODE Battery.
3. Are you interested in your tank levels?
NODE Level
The NODE level allows all fill levels to be specified in %. It also calculates the remaining absolute volume in L. Up to two tank sensors can be connected to a NODE level. If a self-selected limit is exceeded or not reached, the NODE issues a warning via the app.
These sensors read your tank most precisely
4. Do you want to switch devices digitally?
NODE Switch
The NODE Switch is a digital switch that can turn any device on and off. This digital switch can then be operated in the app, on the phone or display and theoretically also by a physical switch. It can also measure the power consumption of the connected devices.
5. Would you like to be able to see your temperatures?

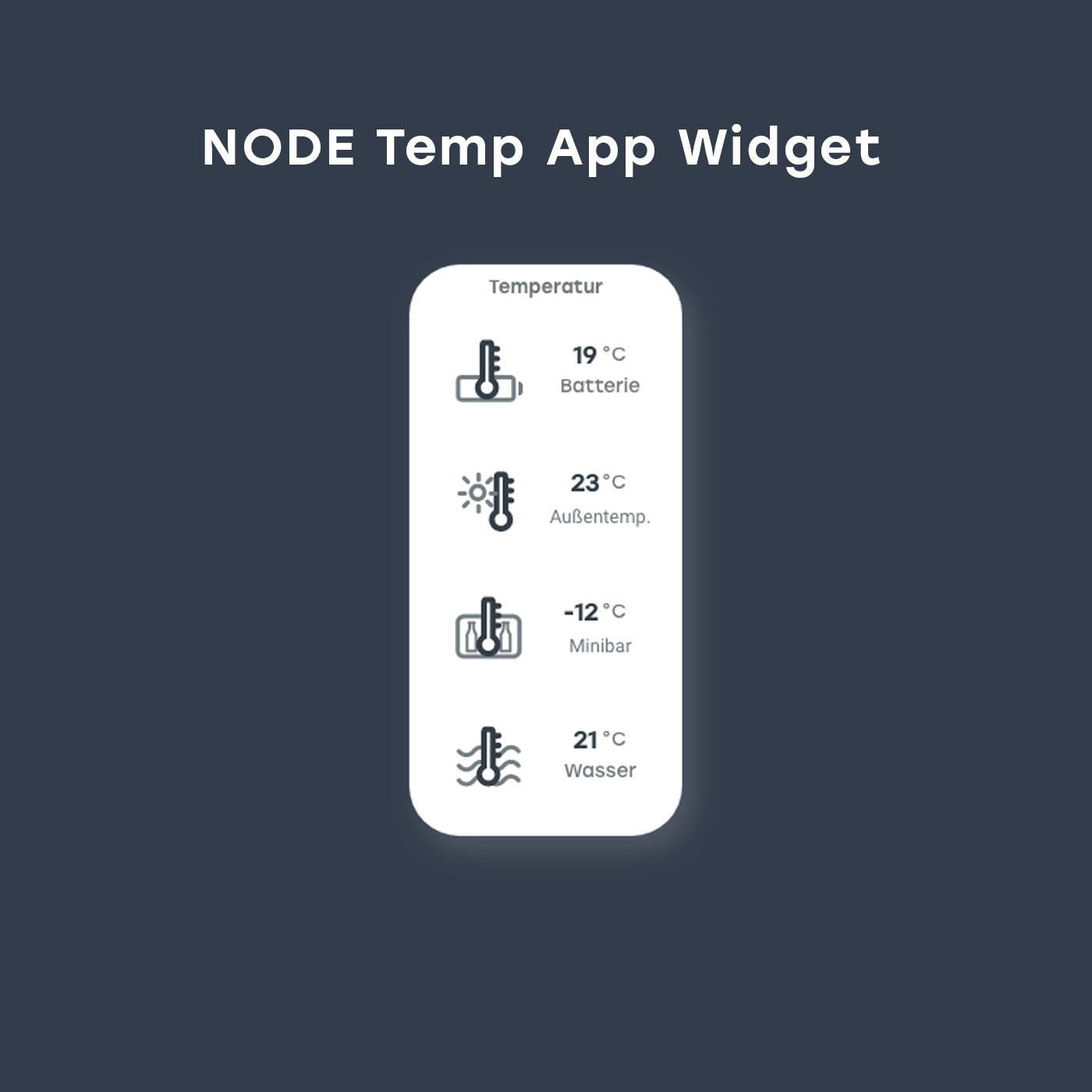

NODE Temp
The NODE Temp measures temperatures precisely. The connected sensors can be installed in devices or outdoors as desired. Up to two sensors can be connected to a NODE Temp. If self-selected limits are exceeded or not met, the NODE issues a warning via the app.
This sensor is best suited for NODE Temp
6. Do you like special lighting?

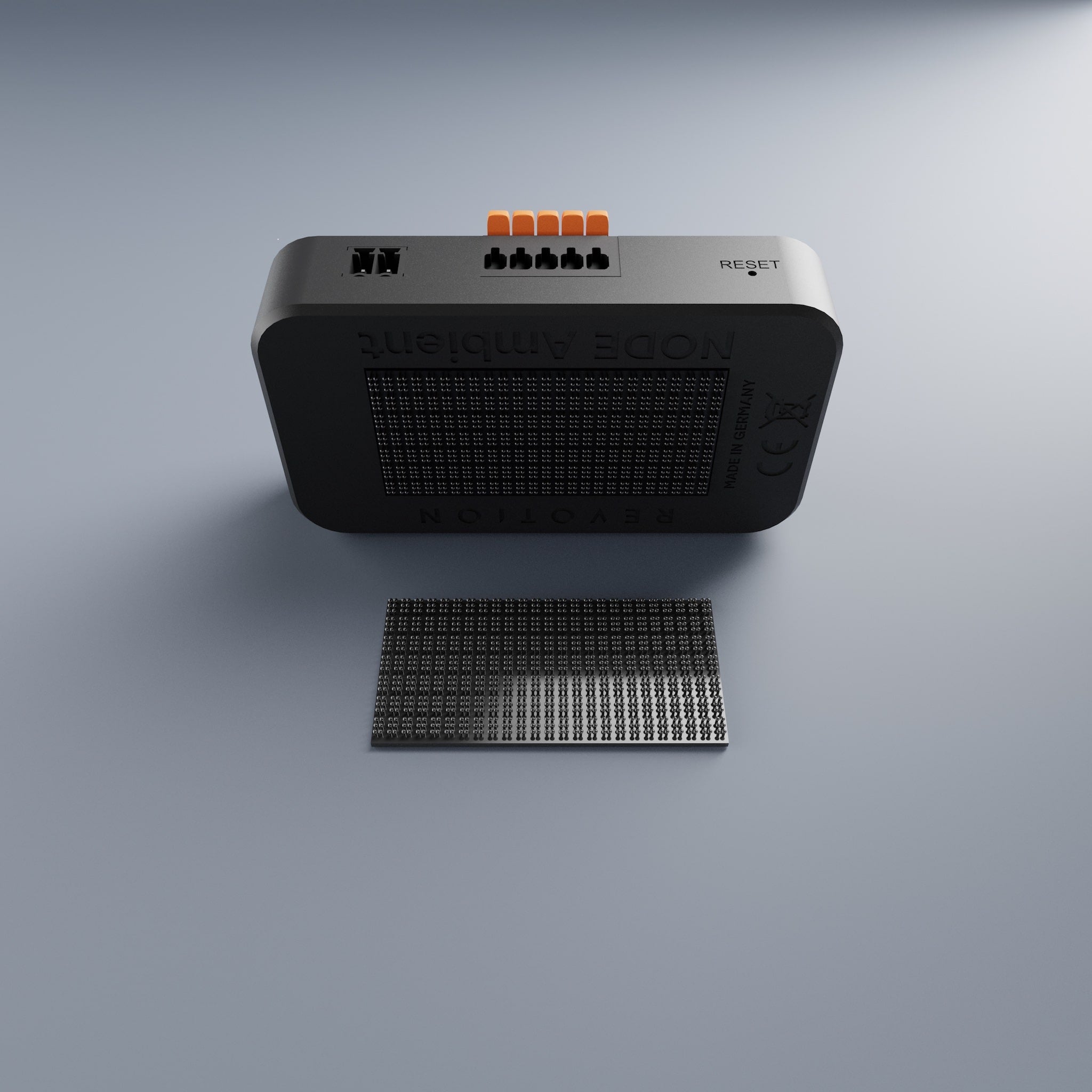

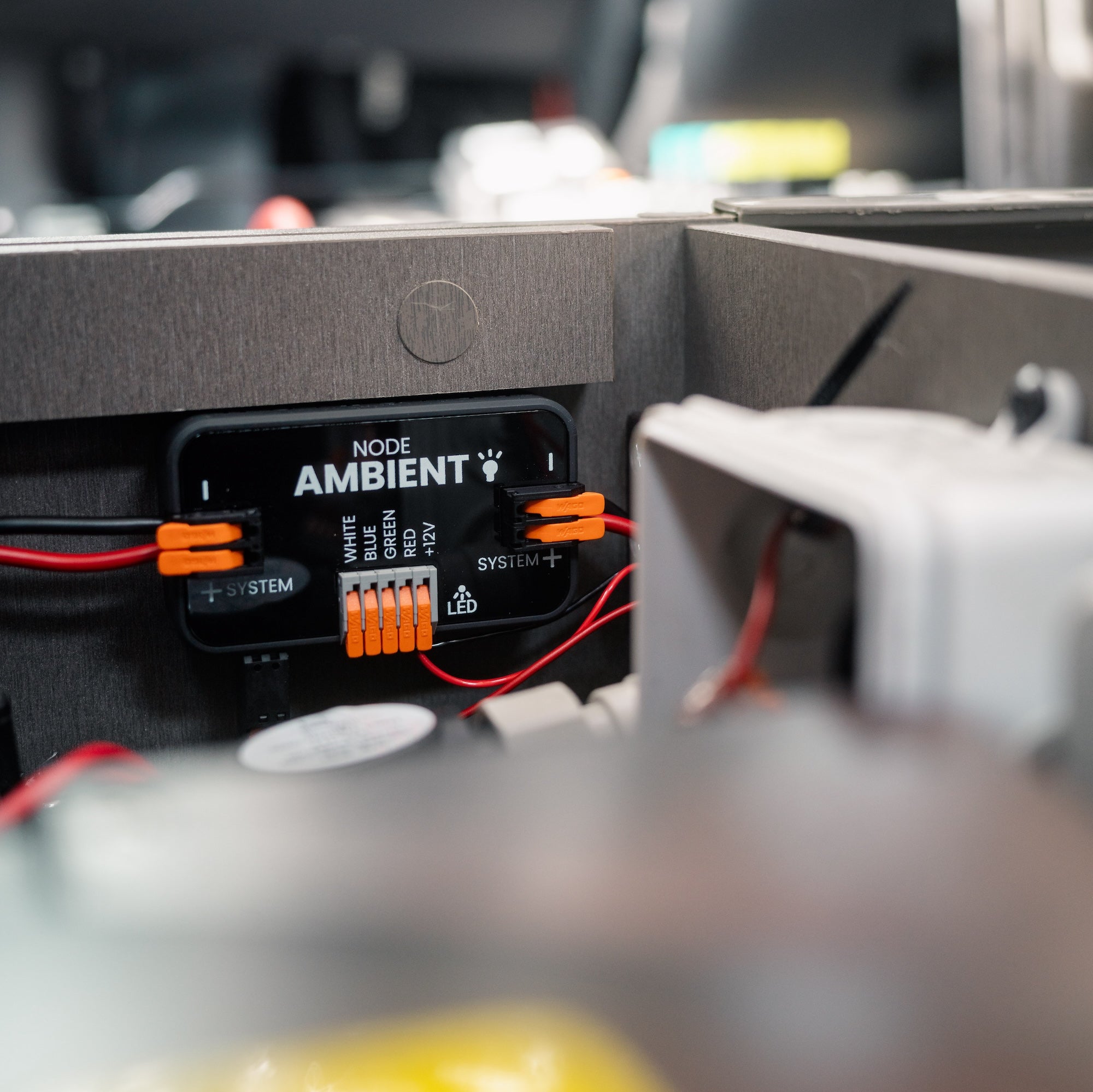

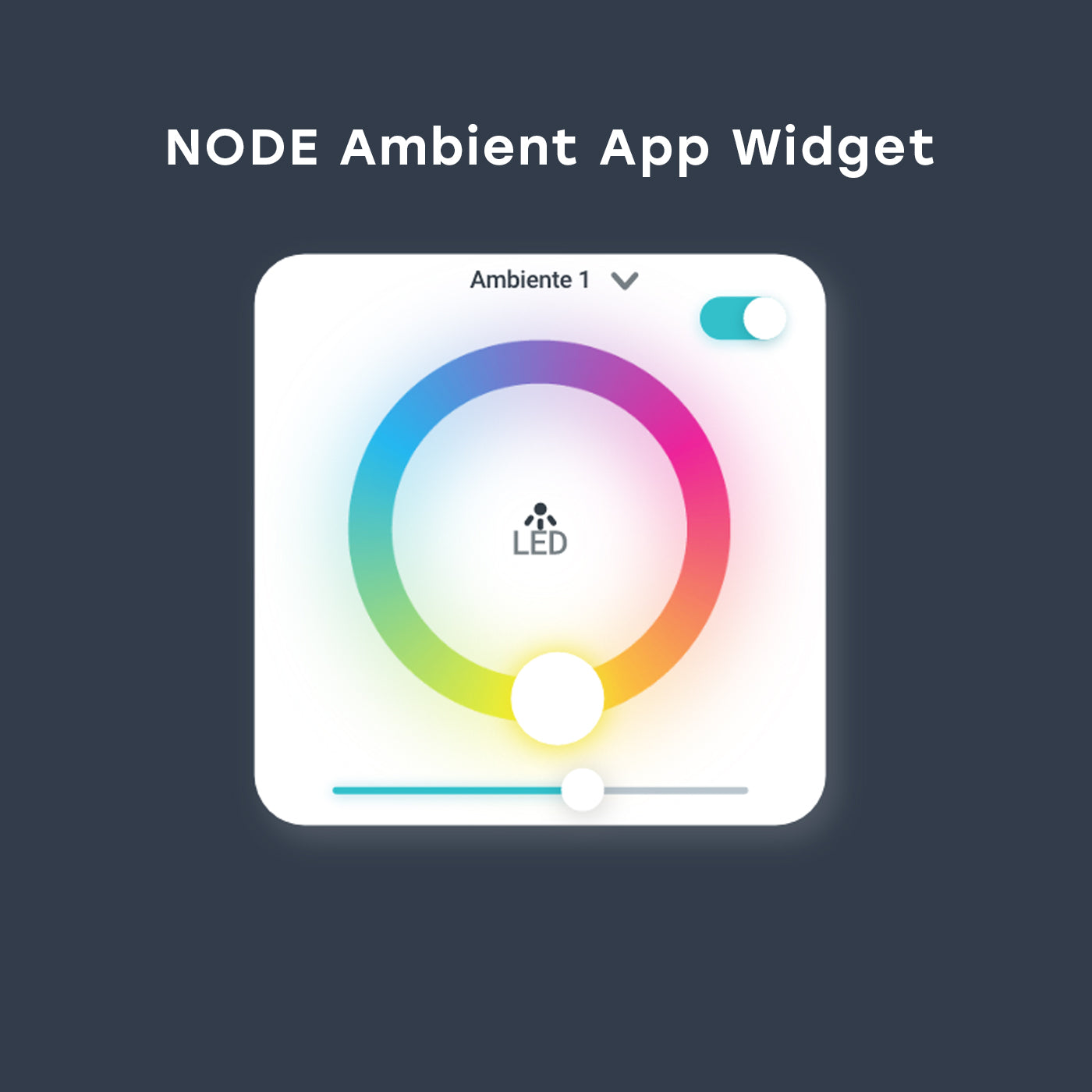

NODE Ambient
The NODE Ambient can control RGB, RGB-W and white LEDs. One LED strip per NODE is supported. All LEDs on a NODE Ambient are switched the same, i.e. different color zones can only be created simultaneously with several NODE Ambients. The NODE Ambient can also be controlled using a physical button.
